Our Immersion Heaters are designed for both industrial and domestic use, offering excellent performance across a wide range of applications.

Applications

Ideal for heating water, oils, acids, tars, waxes, and paraffin in storage tanks, process tanks, and containers. Available with sheath materials like stainless steel (304, 316, 310), lead bonded, glass, silica, mild steel, and titanium to suit specific needs.

Design Features

Horizontal Mounting: Easy to install with replaceable heating elements.

Robust Construction: General-purpose models come with 1″ to 2.5″ BSPT heads; heavy-duty versions with a 6″ mounting flange.

Custom Solutions: Manufactured based on customer requirements with flexible sizing options.

Technical Specifications

General-Purpose Models: 1 5/8″ nickel-plated brass sheath, lengths from 16″ to 36″.

Heavy-Duty Models: 2″–2.5″ mild steel or optional SS/glass/titanium sheaths; lengths from 12″ to 96″.

Power Range: 5 to 15 watts/in², suitable for single or three-phase supply.

Temperature Control: Thermostat range of 30–90°C, with higher ranges available using contactors.

Product Variants

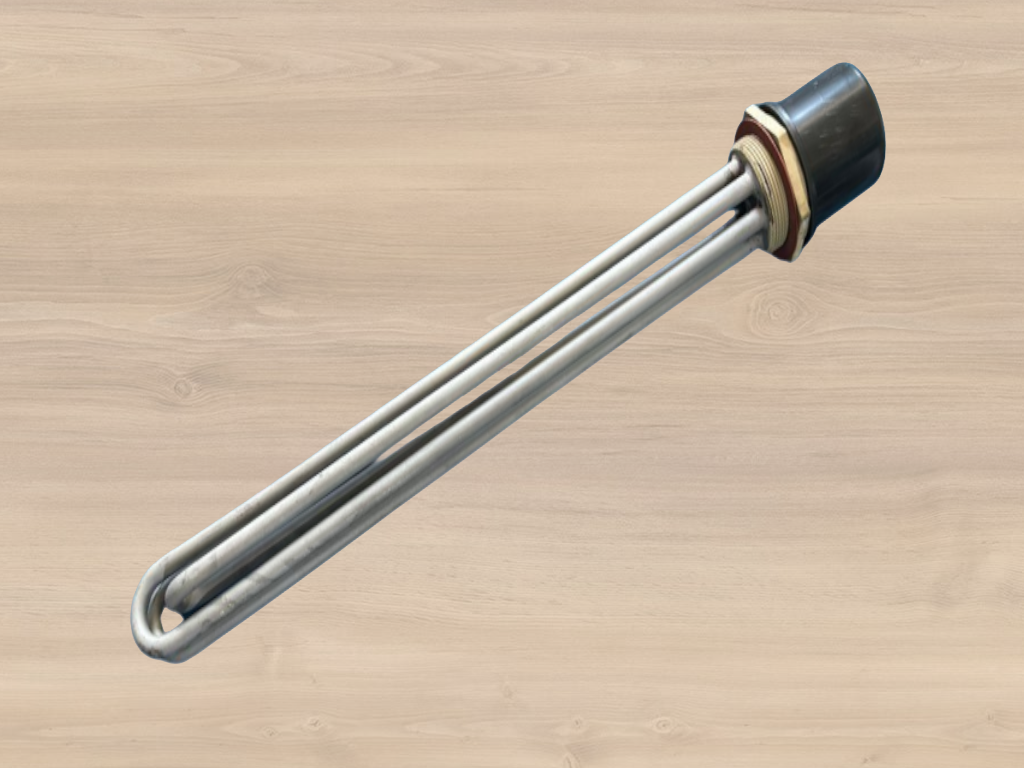

Domestic Water Immersion Heaters
Wattage: 1000W to 3000W
Voltage: 230V
Mounting: 1.25” BSPT
Depth: 220mm to 425mm
